CONVEYOR PULLEY

VELAAN offers a comprehensive line of conveyor pulley for your bulk material handling needs. Our product line meets the demands of any industry.

Our organization has gained name and fame for manufacturing and supplying an advanced range of Conveyor Pulley, Conveyor Idler, Conveyor Pulley Lagging and others. Stainless Steel Fabrication and Crusher Service & Maintenance are also offered by us. All these are renowned for their excellent quality, reliability and are available at feasible price.

A conveyor pulley is a mechanical device used to change the direction of the belt in a conveyor system, to drive the belt, and to tension the belt. Modern pulleys are made of rolled shells with flexible end disks and locking assemblies.

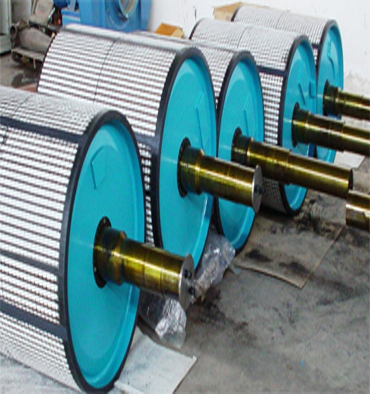

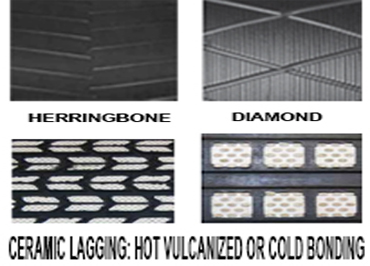

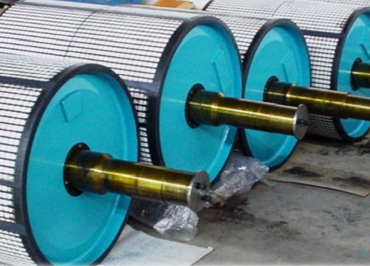

We offer rubber lagging for all customer specific needs. We supplied rubber lagged pulleys for India’s only pelletizing plant at TATA where conveying material having temperature of 150 Degree C.Our range of ceramic lagging offer highest ceramic tiles coverage area . We offer 900 Ceramic tiles in 1 Sq. Meters area of lagging

Awesome Image
Awesome Image
Awesome Image

Product Features

-Experienced Sector

  • Steel Plant, Thermal Plant, Bulk Handling ( Coal , Iron Ore Etc), Mining & Sea Port.

  • -MAX DIA 1500MM DIA X FACE WIDTH 3000MM

  • MAX DIA - 1500 MM.
  • MAX WIDTH - 4350 MM.
  • MAX SHAFT LENGTH - 6000 MM.

  • -Description (Type/Size/Rating)

  • Max Size 1400 Dia (56Thk) X 2600 F.W X 520 Dia Shaft.

  • -Max Conveying Capacity Supplied

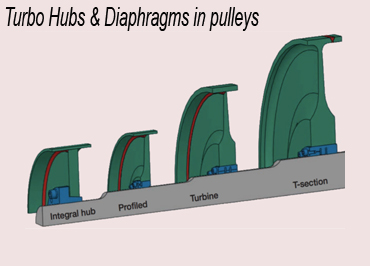

  • 8,000 Tons per hour ( Velaan Designed T- Tubro hub Pulleys for JSW ).

  • -Max Pulley Size Manufactured

  • 1,400 Dia X 2400 Width X 60 Shell Thk X 490 dia Shaft.

  • -Max Individual Pulley weight manufactured

  • 14,000 Kgs.
  • Type Of Pulley Manufactured

    Annual Production for last 3 years

  • Year 2019 - 370 Pulleys.
  • Year 2020 - 420 Pulleys.
  • Year 2021 - 605 Pulleys.

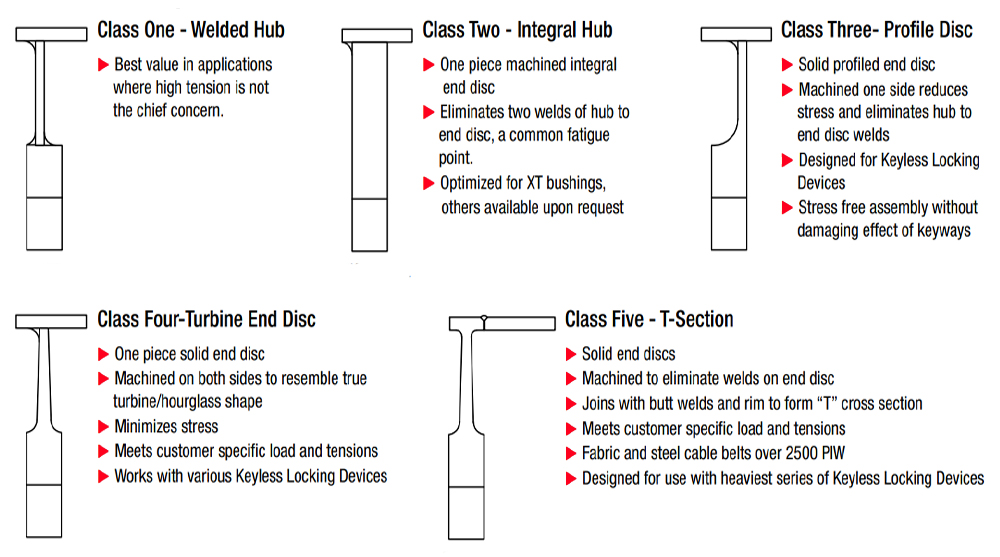

  • TYPES OF PULLEYS
